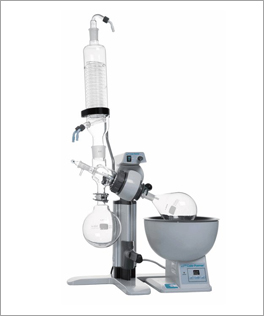

Cole-Parmer Rotary Evaporator System


Cole-Parmer Rotary Evaporator System

  Convenient, quality evaporator systems at affordable prices.
  Small Footprint takes up minimal lab space.
  Mechanical lift to easily raise & lower system.
  Rotary Evaporator features a sparkless, brushless high-torque motor to provide constant
   rotation at speeds from 20 to 180 rpm.
  Digital Water Bath operates from ambient to 90ºC (194ºF) with microprocessor temperature
   control to within ±1.5ºC. Heating coils are located beneath the pan surface.
   Built-in overheat protector shuts down power in case of controller failure.
  Standard Glassware Set includes 1-L pear shaped evaporating flask, 1-L round-bottomed
   receiving flask, and condenser.
  Cole-Parmer Rotary Evaporator System; Vertical, 230 VAC.


Cole-Parmer Rotary Evaporator System   Convenient, quality evaporator systems at affordable prices.
  Small foorprint takes up minimal lab space.
  Mechanical lift to easily raise and lower system.
  Rotary Evaporator features a sparkless, brushless high-torque motor to provide constant
   rotation at speeds from 20 to 180 rpm.
  Digital Water Bath operates from ambient to 90ºC (194ºF) with microprocessor temperature
   control to within ±1.5ºC. Heating coils are located beneath the pan surface. Built-in
   overheat protector shuts down power in case of controller failure.
  Standard Glassware Set includes 1-L pear shaped evaporating flask, 1-L round-bottomed
   receiving flask, and condenser.

Specifications AY-28615-01 AY-28615-02
Bath temperature Ambient to 90°C (194°F) Ambient to 90°C (194°F)
Bath Capacity 3 L 3 L
Power (Hz) 50 50
Rotation speed range 20 to 180 rpm 20 to 180 rpm
Speed resolution 1 rpm 1rpm
Evaporation flask size 1 L 1 L
Condenser type Diagonal Evaporators Vertical Evaporators
Power (VAC) 230 230
