Laminar Flow Workstation |
| |
 |
OPTIONS :
• Antistatic Work Surface.
• Adjustable Motor-Blower speed.
• Stainless steel work surface.
• Dead table for vibration-free work surface.
• Ultra-violet tube light for specific applications.
• Shutter-Folding / Removable.
• Gas cock assembly.
• Steripot assembly for tissue culture.
• Stainless steel cabinet.
• Antistatic Grill with Power Pack. |
| |
|

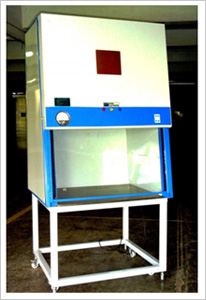

Bio-safety Cabinet : |
| |
 |
FEATURES :
• Well-lit work surface
• Low vibration and noise.
• Convenient service access.
• Easy to reassemble
• Adjustable motor blower speed.
• Gas cock assembly.
• Stainless Steel work surface
• Sink
• Ultra-violet tube light
• Exhaust duct in PVC.
• Virus burner
• Speed Regulator for Blower
|
|
| |
|
ELECTROSTATIC CLEANER FOR AHU : |
| |
CONSTRUCTION: - |
| |
| CONSTRUCTION |
CRCA M S WITH STOVING ENAMEL OR POWDER COATING PAINTS |
| PREFILTER |
WIREMESH OR HDPE 5 TO 15 MICRON |
| STACK ASSEM BLY |
ALUMINIUM PLATES WITH EPOXY INSULATORS
(SS CAN BE OFFERED AS OPTIONAL) |
| H.V. SIPPLY |
IONISING 12 KV COLLECTION 6 KV |
| EFFICIENCY OF FILTERATION |
AVERAGE BELOW 5 MICRON PARICCLES - 90%
VELOCITY OF AIR FOR BEST RESULTS 2.5 M/S |
| MAINTENANCE |
NEEDED IN SITU CLEANING CLLEANING WITH VACUUME CLEANER BUT FOR BEST RESULTS
REMOVE THE STACKS & CLEAN WITH COMPRESSED AIR BLOW /WITH DETERGENT WATER |
|
| |
|
Electrostatic Cleaner : |
| |
 |
|
| |
|
HEPA Filter : |
| |
 |
CONSTRUCTION :
• Filtering Media Micro glass fiber filter paper, pleated with Aluminium spacers used for separating consecutive pleats.
• Frame GI Powder Coated / Al.. Anodized / Wood.
• Adhesive Epoxy based adhesive is used for leak proof joint Between filter paper & frame
• Gaskets Sponge rubber gaskets are provided for sealing of filter on its mounting frame |
| |
|
Air Purifier : |
| |
 |
LONGEVITY FOR LONGER & HEALTHIER LIFE
• NO IRRITATION:Longevity filters air upto particles of 0.3microns size e.g. microbes; dust etc.and protects the patients from infection
• NO ALLERGY:Filters pollens, dust and other particles Which may cause allergic reactions
• NO SMELL Filters 500 different types of Odors using carbon adsorption Principle |
| |
|
Clean Room : |
| |
 |
Envair Electrodyne offers a wide range of Custom designed clean room to cater to almost every end use application, ranging from pharmaceuticals to space research. Executed clean rooms in India span over 4 million Sq.Meters across cleanliness levels ranging from 100,00 to 100.
CLEAN ROOM COMPONENT SELECTION CHART :
| INDUSTRIAL TYPE |
Pharma
Micro Electronics
PU Paint
Biotech
Automotive
Other (Pl.specify) |
| STANDARDS CONFIRMING TO |
US Federal Std. 209E NASA NHB 5430.9 AHDA Other (Pl. specify) |
| CLASS OF CLEANLINESS |
1,00,000
10,000
1000
100
10
Or any other |
| TEMP CONTROL LIGHTING LEVEL SOUND LEVEL |
Y/ N LUX DECIBLES |
| FLOORING FINISH |
PVC PVC-ESD Epoxy Kota Stone False Floor |
| PARTITIONS |
SS Section+Glass panels Al.Section+Laminated panels Gypsum+PVC Cladding Brickwork+PVC Cladding Metal. Sandwich Panels |
| FALSE CEILING |
SS Section + Panels Al.Section+Laminated panels Al.Section+Metal Panels Gypsum+PVC Cladding Gypsum+Painting+EnamelPolyacrylate Epoxy |
| WALLS FINISHES |
Finish using Epoxy Paint Enamel Paint Polyacrylate Paint PU Paint |
| CLEAN ROOM EQUIPMENTS |
Pass box,Air Shower Laminar Flow Equipment, Special equpt. Clean Room Apparels,Bio-hazard Units,Fumehoods,See thru talk thru Garment Cabinets, Clean Room Furniture,Service links |
|
| |
|
FUME EXTRACTOR AND OIL MIST COLLECTER : |
| |
DESCRIPTION :
Pollutants Like welding fumes, smoke and mist, grinding dust, foundry fumes, solvents, and vapoures.which are present in most industrial environments need to be eliminated by using source extractors, since these pollutants are toxic and hazardous to the workers and also affect the quality of the products. Kirloskar Fume Extractors and Oil Mist Collectors are the only effective solutions to these problems. They improve the working environment and reduce cost of general ventilation by spot exhaustion and cleaning.
These work on the principle of electrostatic precipitation. |
| |
|
AIR CONTAMINATION CONTROL FOR OPERATING THEATRES : |
| |
DESCRIPTION :
• Sterile Clean Air plays an important role during surgical procedure.
• Sterile Clean Air has a dramatic effect in deep wounds.
• In the Operating Room any kind of operation being performed should be under Sterile Air Environment. This sterile air environment protects the
surgical open area from any kind of infection and also protect septic patient from effects of septic condition.
• It reduces healing period hence reduces post operation curing period and dose of antibiotics.Hospital will have positive points for NABL Accredition |
| |
|
